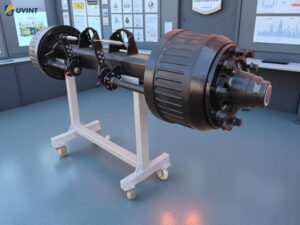

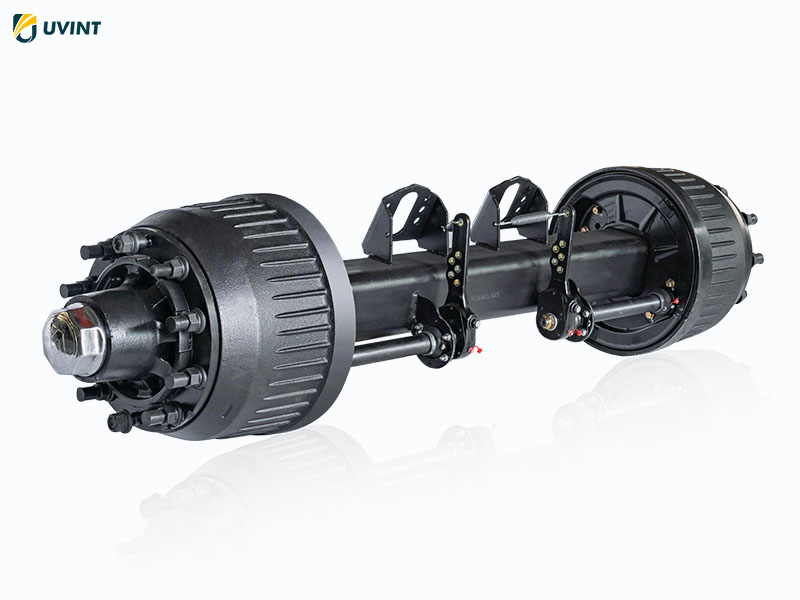

Product Characteristics
High-Precision Manufacturing: German axle requires extremely high production processes and machining accuracy to ensure a tighter fit with wheel-end components and minimize operating resistance.
Long-Term Durability: German axle increased weight, combined with specialized accessories and lubricating grease, allows for extended maintenance cycles, making it suitable for high-value-added transportation scenarios such as cold chain and hazardous chemicals.
Analysis Diagram
Product Parameters
| Alxe Type | LYFG-12 | LYFG-14 | LYFG-16 | LYFG-18 | LYFG-20 |
| Max.Capacity(T) | 12 | 14 | 16 | 18 | 20 |
| Track(mm) | 1840 | 1840 | 1850 | 1850 | 1850 |
| Brake(mm) | φ420×180 | φ420×200 | φ420×200 | φ420×200 | φ420×220 |
| Bearing | 33118
33213 |
32219
33215 |
32222
32314 |
32222
32314 |
32222
32314 |
| Spring Center Distance (mm) | ≥980 | ≥980 | ≥980 | ≥980 | ≥980 |
| Axle Beam(mm) | □150 | □150 | □150 | □150 | □150 |
| Chamber Distance(mm) | 423 | 355 | 358 | 358 | 358 |
| Stud | 10×M22×1.5
ISO |
10×M22×1.5
ISO |
10×M22×1.5
ISO |
10×M24×1.5
ISO |
10×M24×1.5
ISO |
| P.C.D(mm) | 335 | 335 | 335 | 335 | 335 |
| H(mm) | 280.8 | 280.8 | 280.8 | 280.8 | 280.8 |
| Total Length(mm) | ~2144 | ~2198 | ~2265 | ~2265 | ~2265 |
| Recommended Wheel | 7.5V-20 | 8.0V-20 | 8.5V-20 | 8.5V-20 | 8.5V-20 |
| Axle weight（kg） | 333 | 380 | 415 | 440 | 355 |
Why Choose the American German Axle?
•German axle camshaft adopts special sealing processing to ensure that grease will not enter thebrake drum, which is more safe.

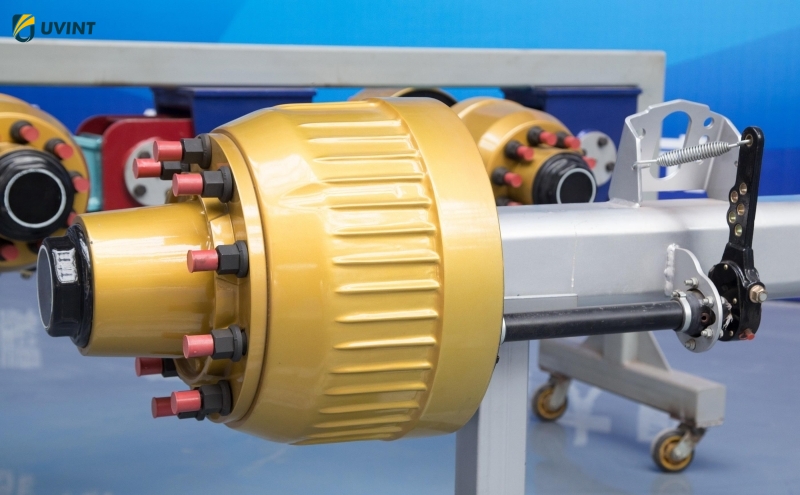

•The German axle adopts a new type of closely fitting hub cover and O-ring seal, which has excellent sealing performance.
•German axles are more suitable for matching with National VI emission standard tractors, enabling the coordinated operation of the main and trailer throughout their entire life cycle.

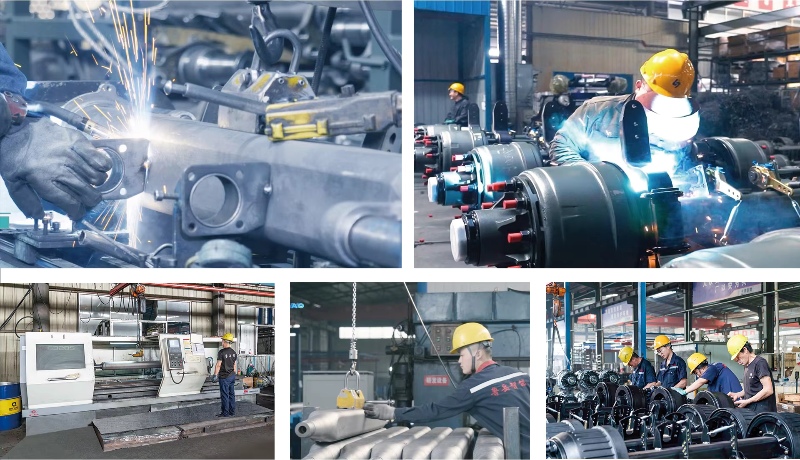

Factory Show
Packaging and transportation
