Product Characteristics

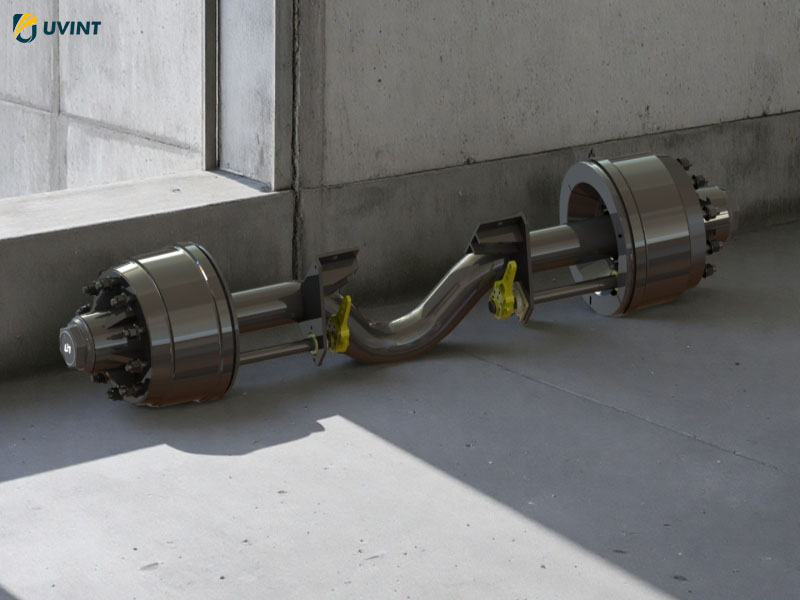

Innovative Drop Center Design
One of the key features of this drop center axle is its drop center construction, specifically crafted to interface with various trailers seamlessly. This thoughtful design increases ground clearance and facilitates easier maneuverability, making it a practical choice for both short and long-haul transport. Whether handling commercial or recreational loads, this axle provides unmatched versatility and durability.
Uncompromising Quality Standards
Engineered using high-grade materials, the American drop center axle is resistant to wear and tear, ensuring longevity in the most demanding environments. The quality craftsmanship reflects attention to detail, catering to users who prioritize a reliable and low-maintenance solution for their transportation needs. Compatible with multiple trailer configurations, this axle is a dependable option for various applications.
Analysis Diagram
Product Parameters
| Axle Type | LYYE6-10 | LYYE9-10 |
| Max.Capacity
(T) |
10 | 10 |
| Track(mm)L2 | 1840 | 1840 |
| Brake(mm) | 420×180 | 420×180 |
| Bearing | HM518445/10
HM518445/10 |
HM518445/10
HM518445/10 |
| Spring Center
Distance (mm)L3
|
228.6 | 152.4 |
| Axle Beam
(mm) |
○127
|
○127
|
| Chamber
Distance (mm) |
358 | 541 |
| Wheel Fixing Stud | 10×M22×1.5
ISO |
10×M22×1.5
ISO |
| Wheel Fixing P.C.D(mm) | 335 | 335 |
| Wheel Fixing H(mm) | 280.8 | 280.8 |
| Total Length(mm)L1 | ~ 2175 | ~ 2175 |
| Recommended
Wheel |
8.50V-20
|
8.50V-20
|
| Axle weight
（kg） |
325 | 325 |
Why Choose Our Drop Center Trailer Axle?
1.Our axle beam is made of high-quality seamless steel pipe
2.After heat treatment, the axle beam performance is more stable, the hardness value is controlled at HRC24-30.
3.Advanced rolling mill machine increases the thickness of the axle beam bearing position (26-29mm), it is 2-3mm higher than other factories, this is in the leading position in China. Our factory specially adds the extrusion production line, more excellent.
4.For the key accessories, we adopt high-end configuration in the same industry in China.
5.Our factory adopts good inspection methods, we have comprehensive test platform for axle performance test.

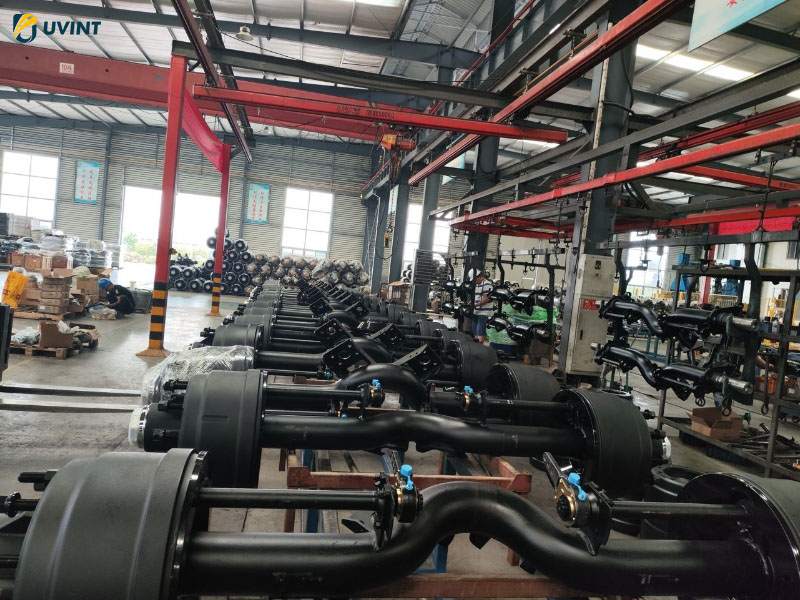

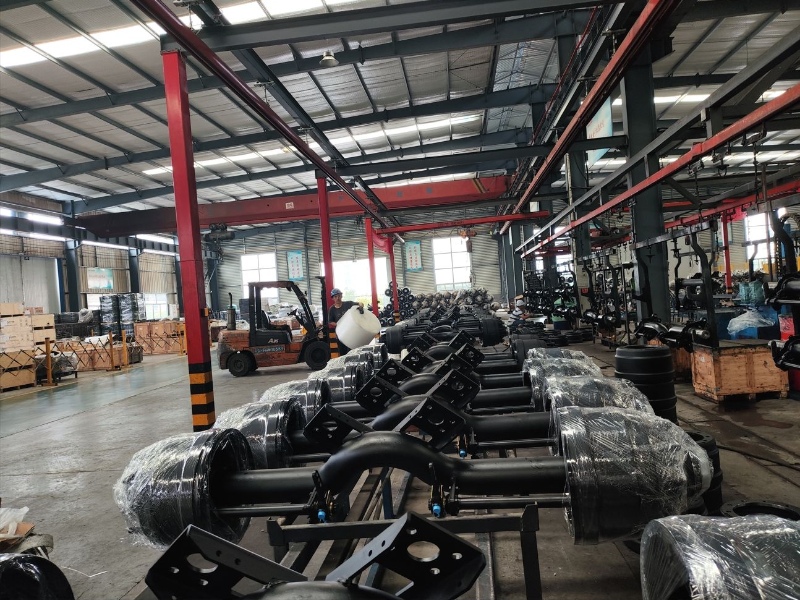

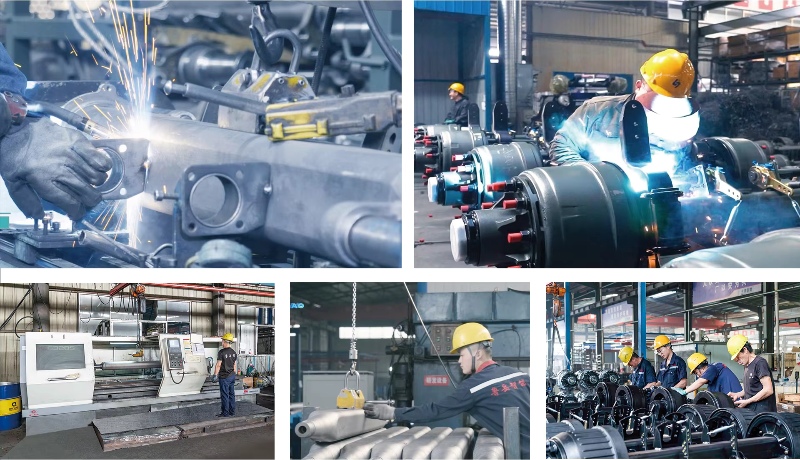

Factory Show
Packaging and Transportation
