Product Characteristics
When it comes to transporting valuable cargo or enjoying your travels, safety and reliability are paramount. Our Disc-Brake Axle for trailers is specifically designed to deliver superior control, smooth braking, and unmatched durability. Whether you’re towing heavy loads or navigating tricky terrains, this essential part ensures your trailer operates at maximum efficiency while keeping your journey secure.
Durability: Disc-brake axle systems generally last longer and are less prone to damage from overheating or wear, making them ideal for heavy-duty vehicles.
Safety: Disc-brake axle provide superior stopping power and shorter stopping distances, which is crucial for heavy vehicles.

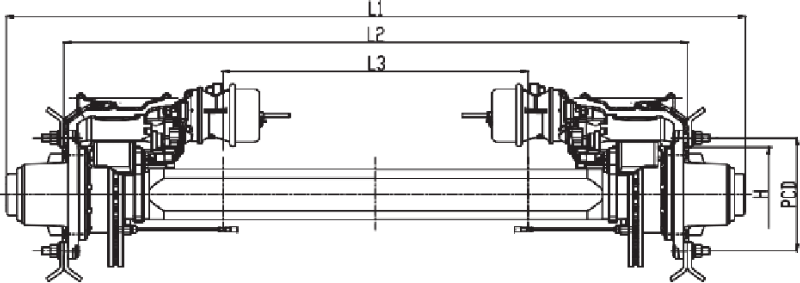

Analysis Diagram
Product Parameters
| Axle Typ | LY-10P | LY-13P | |
| Max.Capacity (T) | 10 | 13 | |
| Track(mm) | 1840 | 1840 | |
| Disc Brake(mm)
|
Type | Disc | Disc |
| Size（mm) | φ430×45×131 | φ430×45×150 | |
| Bearing | HM518445/10
HM518445/10 |
HM518445/10
HM518445/10 |
|
| Spring Center Distance (mm) | 900 | 900 | |
| Axle Beam (mm) | □150 | φ127 | |
| Wheel Fixing Stud | 10×M22×1.5 ISO | 10×M22×1.5 ISO | |
| Wheel Fixing P.C.D(mm) | 335 | 285.75 | |
| Wheel Fixing H(mm) | 280.8 | 219.8 | |
| Total Length (mm) | 2180 | 2180 | |
| Recommended Wheel | 22.5″ | 22.5″ | |
| Axle weight （kg） | 350 | 350 | |

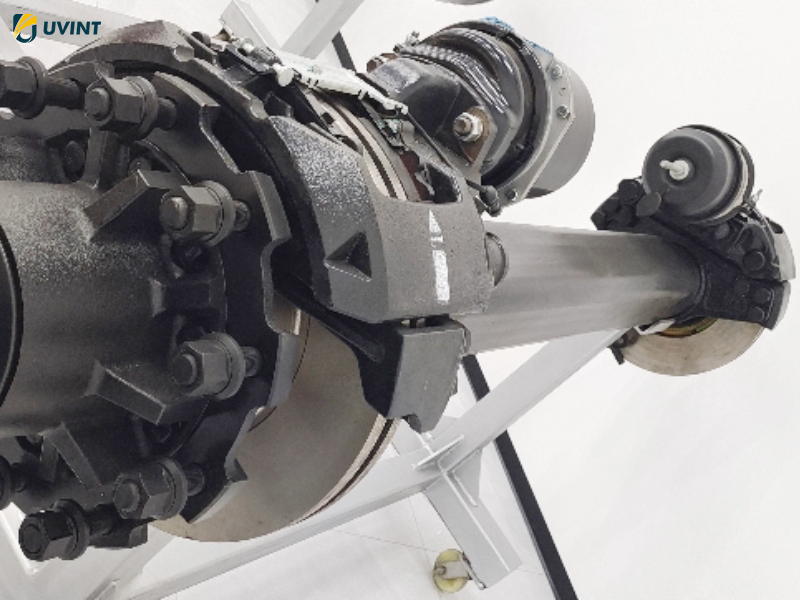

Details
Why Choose Our Disc Brake Axle?

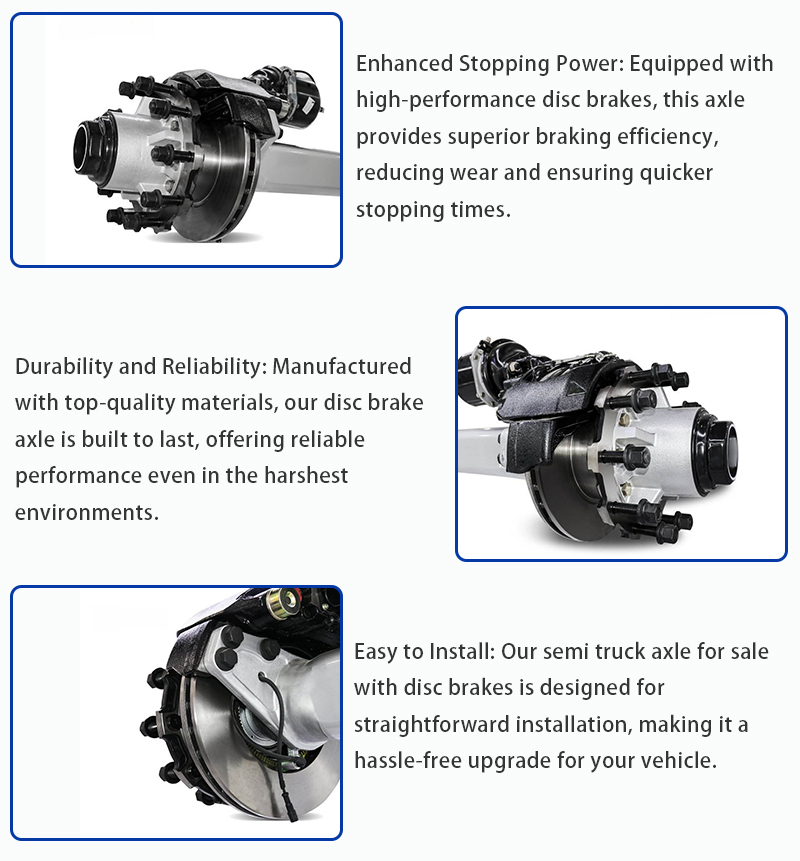

Superior Braking Efficiency: Our disc brake axle with high-quality brake pads are engineered to provide superior braking power, increasing safety on the road and ensuring optimal performance.
Long-Lasting Durability: Made from high-quality steel, our axles are resistant to wear and tear, offering you peace of mind in even the most demanding conditions.
We offer factory direct sales, accept customization and provide affordable prices
