Product Characteristics

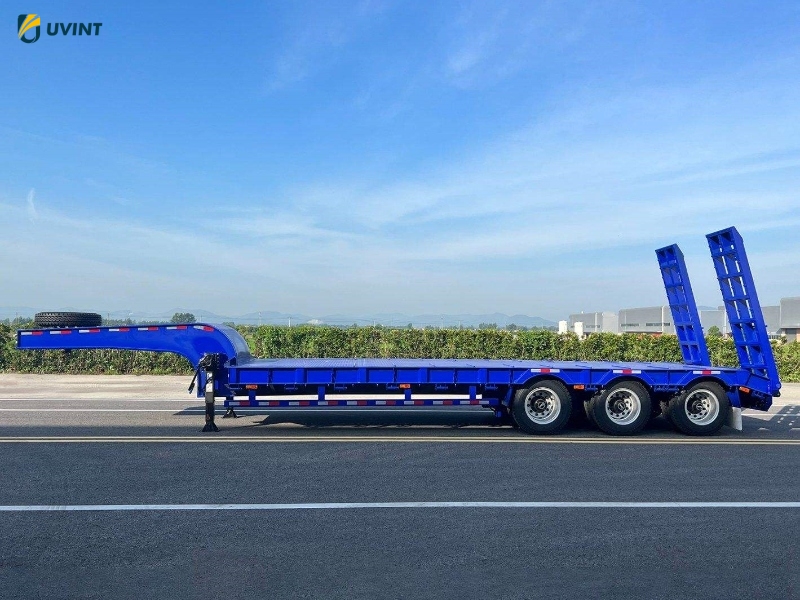

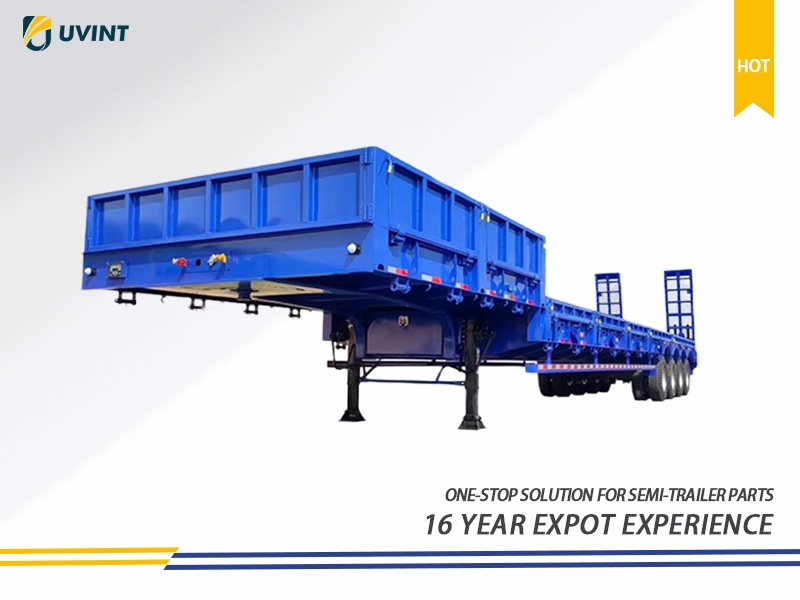

Engineered for maximum versatility, this 40ft flatbed trailer features a three-axle configuration for improved balance and load distribution. The lowbed semi-trailer design ensures easy loading and unloading of cargo, reducing time and effort while increasing overall productivity. Additionally, the spacious flatbed offers ample room to accommodate goods of various dimensions, making it an adaptable choice for companies with diverse transportation needs.
Detail
Product Parameters
| Size | 14550mm*2650mm*1800mm |
| Payload | 80T |
| Main beam | Q345, welded by automatic submerged-Arc processes. Top flange 14mm;Middle Flange 8mm ;bottom flange 16mm |
| Side beam | 16# channel steel(Q235) Or G shape side beam |
| Cross member | 10# channel steel(Q235) |
| Floor | 2/3/mm checkered plate |
| Axle | 3axle FUWA brand 13T |
| Suspension | Mechanical American type suspension |
| Leaf spring | 10pcs*13mm*90mm |
| Tire | 12R22.5 12pcs brand and model optional |
| Wheel rim | 9.0-22.512pcs brand and model optional |
| Kingpin | Jost brand 2/3.5 bolt-in king pin |
| Landing gear | Jost two-speed, manual operating ,heavy duty landing gear 28T |
| Twist lock | 4/8/10/12pcs |
| Braking system | WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks |
| ABS | With |
| Light | LED 8 side lights and 2 rear lights 2 width lamp |
| Painting | Complete chassis sand blasting to clean rust ,1coat of anti corrosive prime,2coats of final paint |
| Accessories | One standard tool box,one spare tire carrier,one crank,one shaft head wrench,four side light,two rear light |
Detail

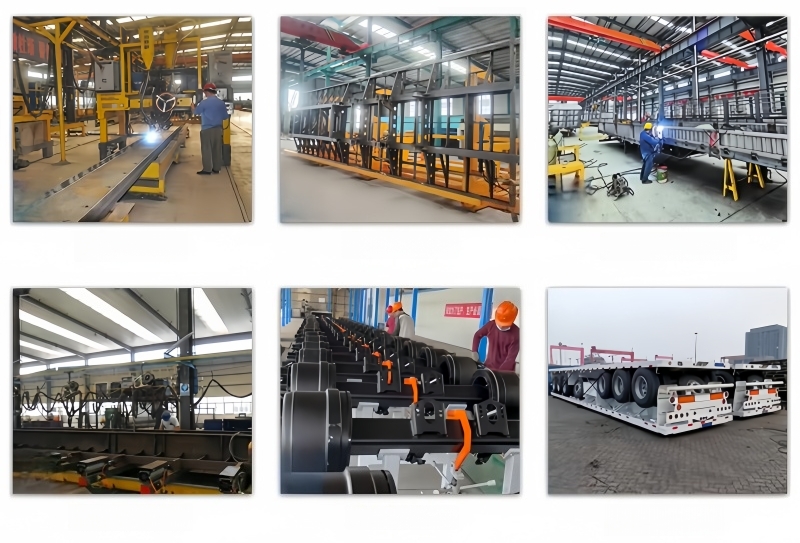

Production Process
