Product Characteristics

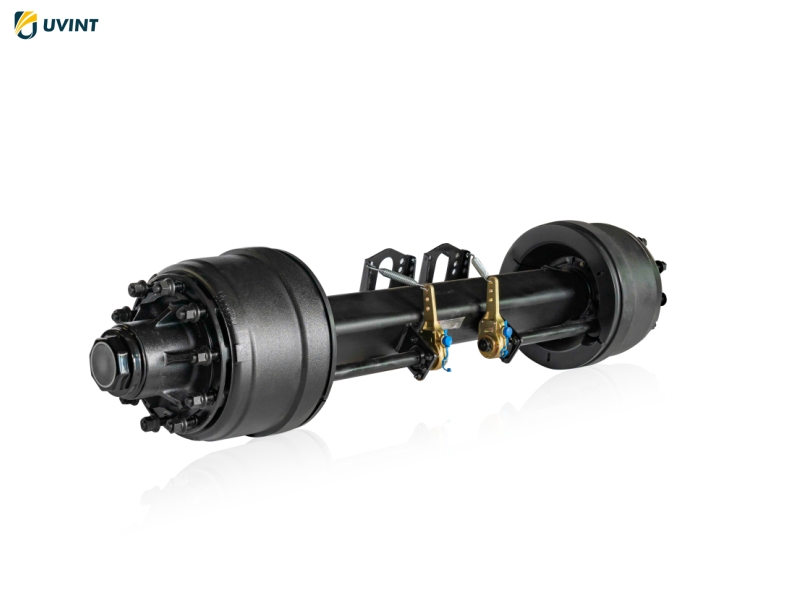

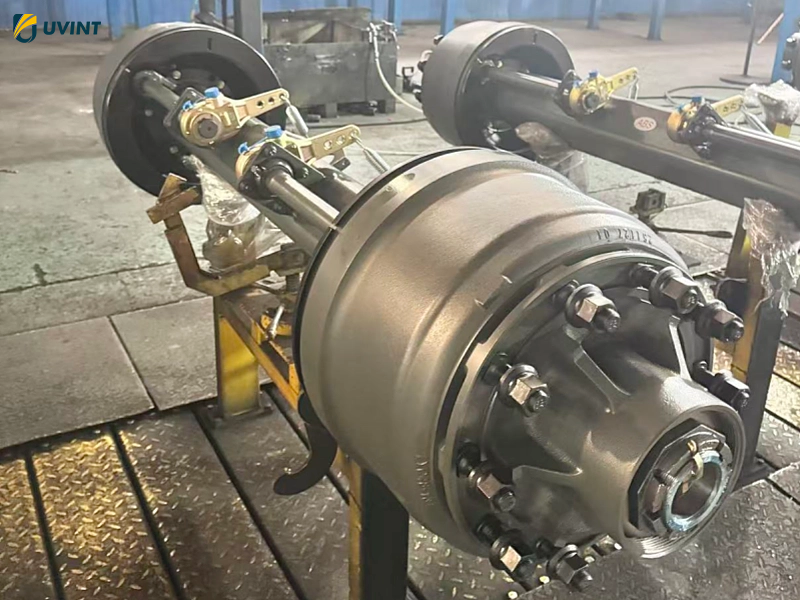

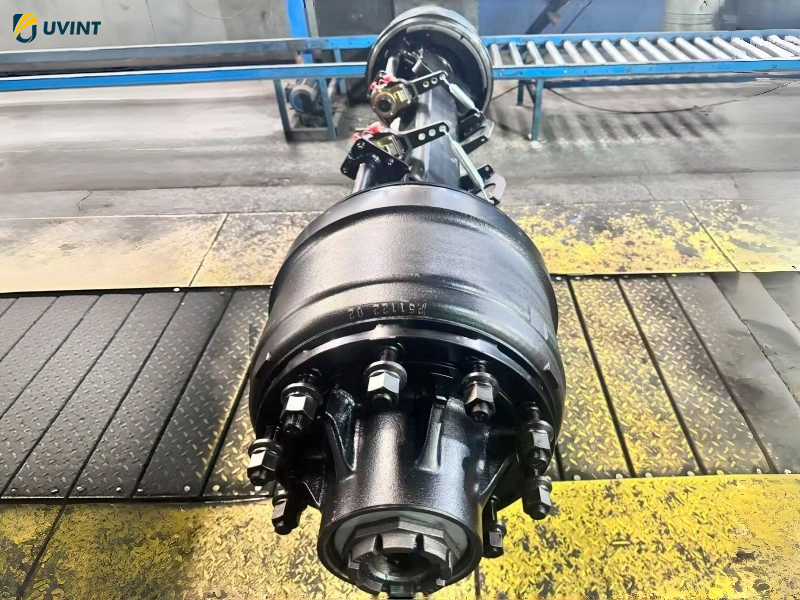

American Inboard Axle Optimized for Strength, Stability, and Performance.Whether you’re transporting goods over long distances or operating in rugged conditions, this inboard axle delivers unmatched reliability, ensuring your operations run seamlessly with minimal disruptions.
Product Advantages:
•The American inboard axle utilizes a one-piece, high-quality, low-alloy steel axle tube, offering strong load-bearing capacity, long life, and lightweight performance.
•This American inboard axle features heavy-duty “Q”-type brakes with strong return springs.
•The American inboard axle utilizes high-performance, asbestos-free brake pads for excellent braking performance and long service life.
•The American inboard axle’s camshaft utilizes special seals to prevent grease from entering the brake drum, ensuring safety.
•The new sealed hubcaps feature O-rings for excellent sealing performance.
Analysis Diagram
Product Parameters
| Alxe Type | LYY-8 | LYY-13 | LYY-13 | LYF-14 | LYF-15 | LYF-16 |
| Max.Capacity(T) | 8 | 13 | 13 | 14 | 15 | 16 |
| Track(mm) | 1850 | 1840 | 1840 | 1840 | 1850 | 1850 |
| Brake(mm) | φ420×150 | φ420×180 | φ420×180 | φ420×220 | φ420×180 | φ420×220 |
| Bearing | 33215 33213 | HM518445/10 | HM518445/10 | HM518445/10 | HM220149/10
HM518445/10 |
HM220149/10
HM518445/10 |
| Spring Center Distance (mm) | 1080 | 970 | 930 | 930 | 940 | 940 |
| Axle Beam(mm) | 127 | 127 | 150 | 150 | 150 | 150 |
| Chamber Distance(mm) | 428 | 380 | 380 | 340 | 390 | 350 |
| Stud | 10×M22×1.5ISO | 10×M22×1.5ISO | 10×M22×1.5ISO | 10×M22×1.5ISO | 10×M22×1.5ISO | 10×M22×1.5ISO |
| P.C.D(mm) | 335 | 335 | 335 | 335 | 335 | 335 |
| H(mm) | 280.8 | 280.8 | 280.8 | 280.8 | 280.8 | 280.8 |
| Total Length(mm) | ~2145 | ~2180 | ~2180 | ~2180 | ~2200 | ~2200 |
| Recommended Wheel | 7.5V-20 | 7.5V-20 | 7.5V-20 | 7.5V-20 | 8.0V-20 | 8.0V-20 |
| Axle weight（kg） | 323 | 330 | 335 | 345 | 370 | 388 |

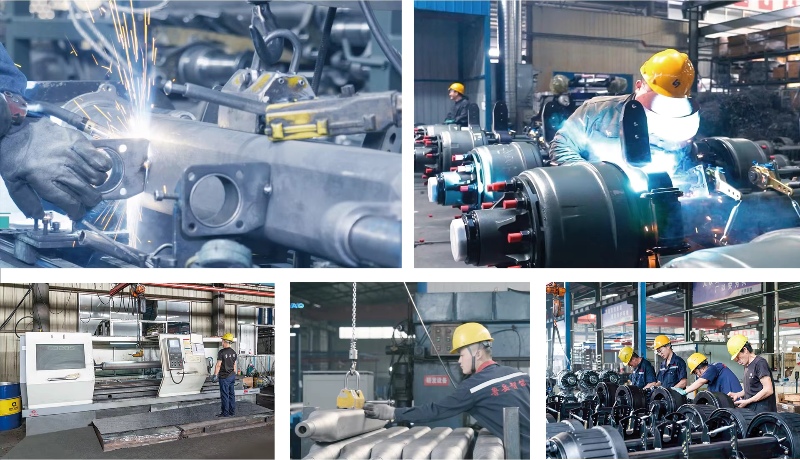

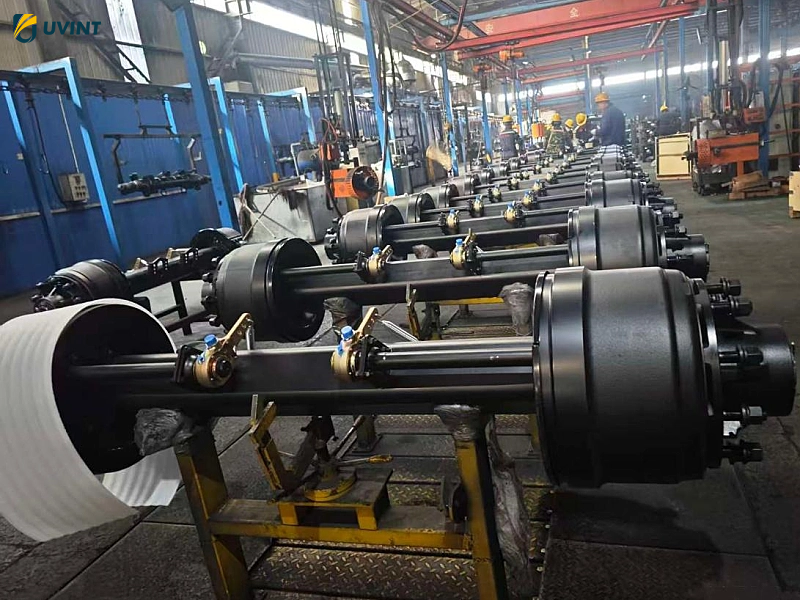

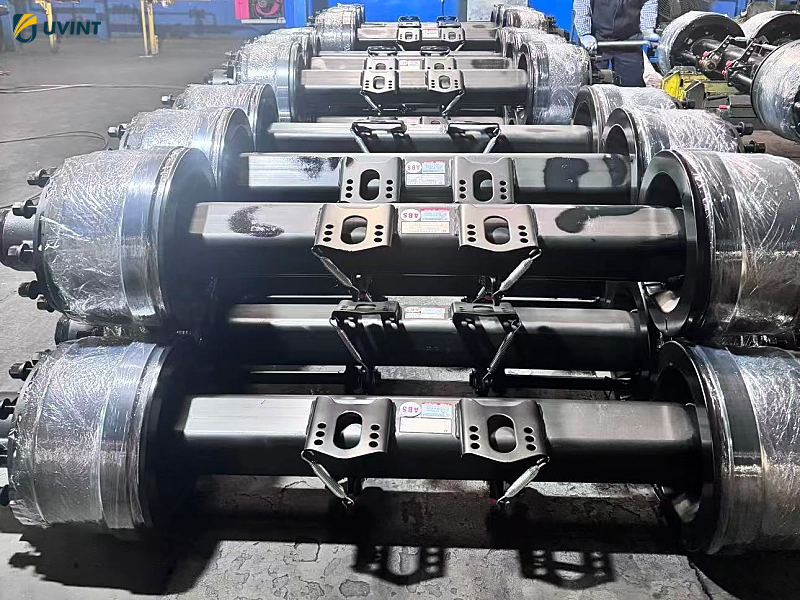

Factory Show
Why Choose the American Inboard Axle?
Every detail of the American Inboard Axle reflects a commitment to quality and innovation. Designed for semi-trailers used in various industries, this axle enhances your vehicle’s operational capacity with features optimized for heavy-duty requirements:
Durability: Resistant to harsh weather conditions and extensive use.
Precision: Manufactured to ensure exact fit and smooth integration.
Cost-Effective: Reduced maintenance costs improve long-term savings.
Safety:Supports advanced stability and optimal load distribution.
Whether you’re retrofitting older models or outfitting brand-new semi-trailers, these axles offer a solution tailored to your needs. Their dependable performance means fewer breakdowns, saving you time and money in the process.

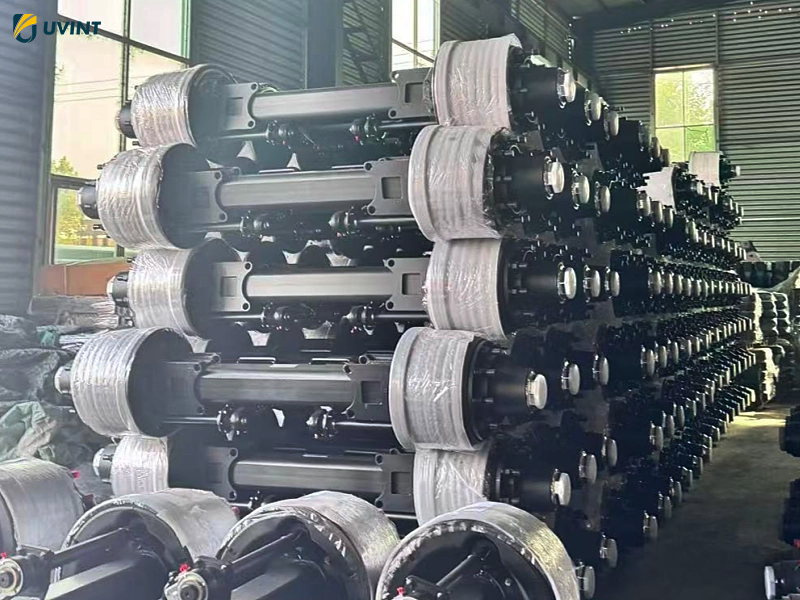

Packaging and Transportation
