Características del producto

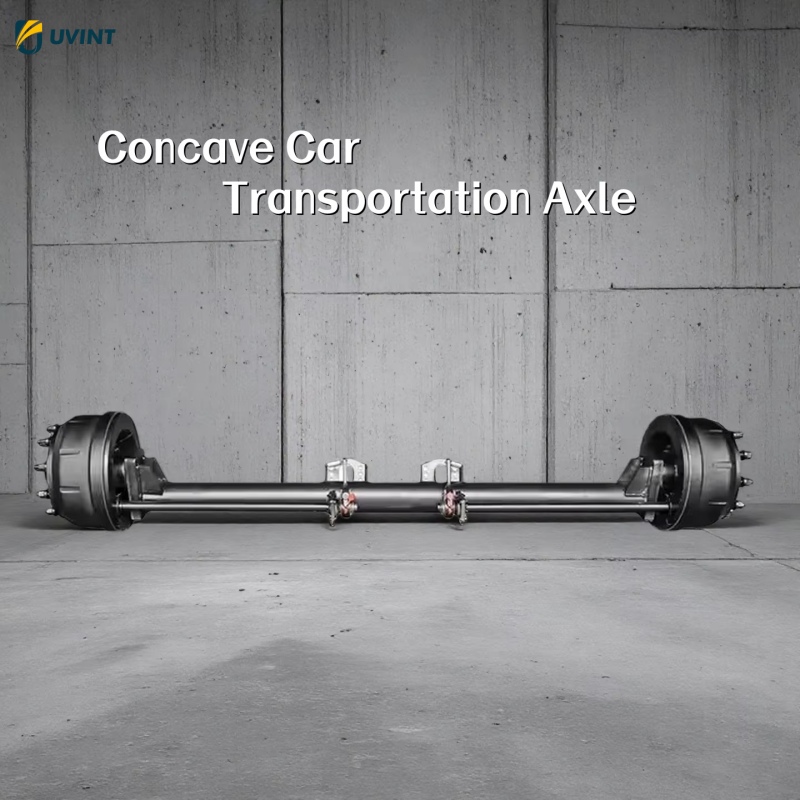

Built with high-grade materials, the Concave Axle is synonymous with durability. Its robust yet lightweight design minimizes wear and tear, reducing maintenance costs over time. The concave shape improves alignment and helps distribute weight evenly, ensuring seamless car transportation, even for long distances. Additionally, it is compatible with a wide range of semitrailers, making it a versatile solution for diverse fleet needs.
The axle is designed to boost operational efficiency while securing safe transit for vehicles. Its advanced engineering minimizes risks associated with vehicle shifting, ensuring peace of mind during travels. Whether you are transporting a single vehicle or an entire fleet, this axle adapts to varying loads effortlessly.

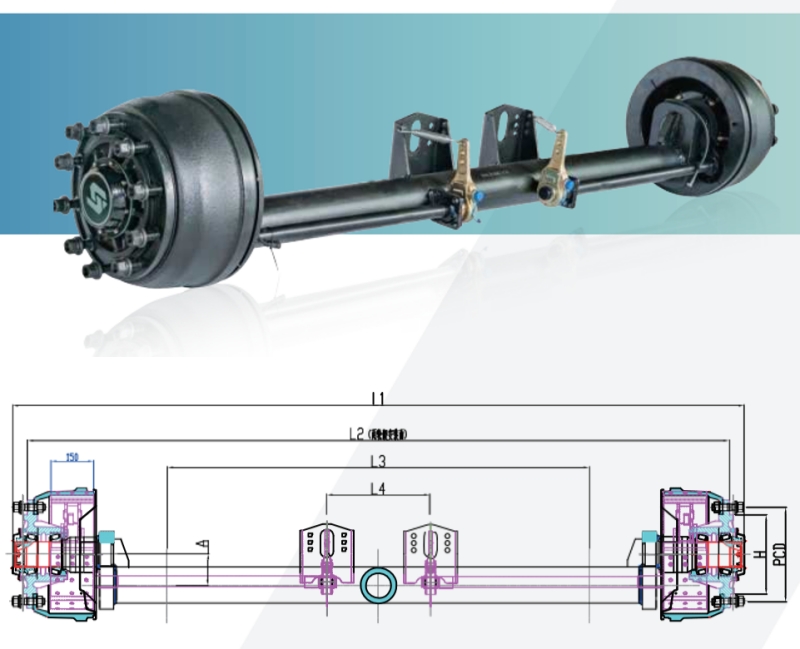

Analysis Diagram
Parámetros del producto
| Axle Type | LY10YG-A110 | LY10YG-A125 |
| Max.Capacity(T) | 10 | 10 |
| L2 Track(mm) | 2496 | 2496 |
| Brake(mm) | 420×150 | 420×150 |
| Bearing | HM518445/10 | HM518445/10 |
| L3 Spring Center
Distance (mm) |
1500 | 1500 |
| Axle Beam
(mm) |
○127
|
○127
|
| Chamber
Distance (mm) |
366
|
366
|
| Concave
Center Distance (mm) |
110 | 125 |
| Wheel Fixing Stud | 10×M22×1.5
ISO |
0×M22×1.5
ISO |
| Wheel Fixing P.C.D(mm) | 335 | 335 |
| Wheel Fixing H(mm) | 280.8 | 280.8 |
| L1 Total Length | ~ 2600 | ~ 2600 |
| Recommended Wheel | 8.50V-20 | 8.50V-20 |
| Axle weight（kg） | 446 | 460 |
Why Choose Our New Concave Axle?
Designed with user convenience in mind, this axle offers easy installation, significantly reducing setup time. Its compatibility with semitrailers of different sizes makes it a practical addition to your fleet. The product’s polished finish not only enhances its visual appeal but also increases resistance to rust and environmental damage, guaranteeing reliability over the long term.

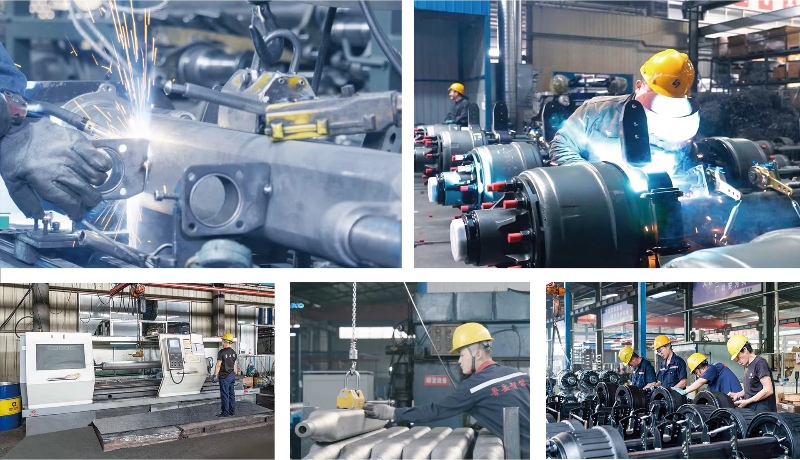

Factory Show

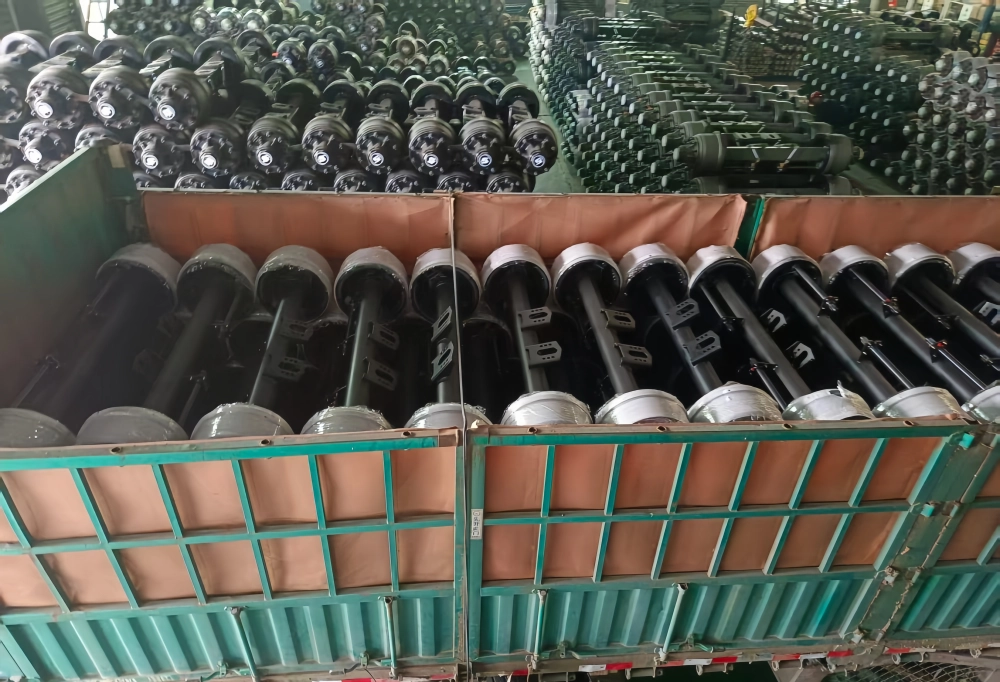

Packaging and Shipping
