Product Characteristics
Built for Longevity and Cost-Effectiveness
Investing in the Bogie Suspension for Semi Trailer means investing in the long-term performance of your trailer operations. Designed to endure the test of time, this suspension system requires minimal maintenance, thus lowering your overall cost of ownership. The corrosion-resistant construction ensures that this Bogie Suspension System withstands the challenges of various environments, delivering consistent functionality whether you’re tackling daily commutes or long-haul transport routes. Enhance your trailer with a component that guarantees value, reliability, and efficiency.
Analysis Diagram
Product Parameters
| Axle Type | LY24G1201 | LY28G1401 | LY32G1601 |
| Rated Load (T) | 2*12 | 2*14 | 2*16 |
| Leaf Spring Type | 90×18 Leaves | 120×17 Leaves | 120×17 Leaves |
| Brake(mm) | 420×180 | 420×200 | 420×200 |
| Bearing | 33118
33213 |
32219
33215 |
32222
32314 |
| L3 Spring Center Distance(mm) | 980 | 900 | 900 |
| Wheel Base (mm) | 1400 | 1550 | 1550 |
| L2 Track (mm） | 1840 | 1840 | 1850 |
| L4 Chamber Distance (mm) | 423 | 354 | 355 |
| （A*B) High Mounting (mm) | 800*980 | 800*980 | 800*980 |
| （H）Height Of Pedestal (mm) | 660 | 660 | 660 |
| Wheel Fixing Stud | 10-M22×1.5 ISO | 10-M22×1.5 ISO | 10-M22×1.5 ISO |
| Wheel Fixing P.C.D(mm) | 335 | 335 | 335 |
| Wheel Fixing H(mm) | 280.8 | 280.8 | 280.8 |
| Total Length(mm) | ~ 2144 | ~ 2192 | ~ 2265 |
| Recommended Wheel | 7.5V-20 | 8.0V-20 | 8.5V-20 |
| Axle weight（kg） | 1900 | 2300 | 2330 |
The trailer bogie suspension produced by UVIN mainly includes 24T, 28T, and 32T, and other specifications can be customized according to customers’ needs.

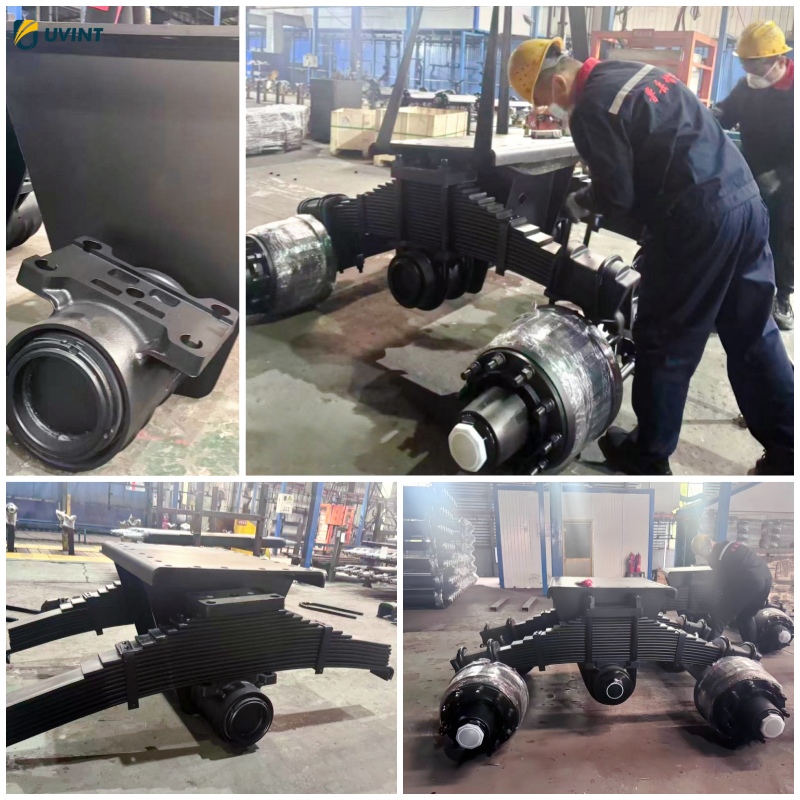

Production Process
The Bogie Suspension for Semi Trailer can reduce unnecessary vibration and shock delivered to the body by the road surface, and improve driving stability. Since the location of the connected two tires is close to the ground, which can reduce costs and reduce the mass of the vehicle, each hub bearing can be adjusted independently to give it high rigidity and obtain better ride comfort. When driving on rough roads, the roll phenomenon can be more effectively suppressed.

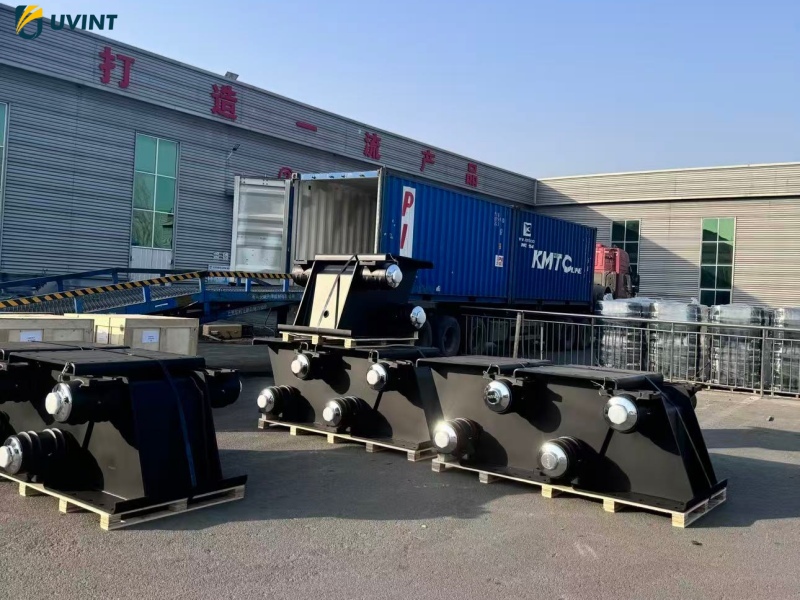

Packaging and transportation
Choosing the Right Packaging for Bogie Suspension
Appropriate packaging is crucial for protecting semi-trailer parts during transportation. Given the size and weight of these parts, sturdy packaging materials such as wooden crates or pallets are recommended. Furthermore, the packaging should be designed to minimize movement and damage during transportation. Clearly labeling the packaging with handling instructions and destination information will also help smooth logistics.
Tracking and delivery
Once transportation begins, it is crucial to monitor its progress. Provide tracking services to keep exporters and importers informed of the latest status of their goods at all times. Timely communication with the buyer about the expected delivery date and any possible delays helps manage customer expectations.
Factory Show
We have more than 150 sets of production equipment and are a professional enterprise integrating scientific research, design, production and sales.
We also boast an annual production capacity of 60,000 sets of American and German-style semi-trailer axle assemblies and 10,000 sets of various suspensions.
